Integration of Gitea with Docker Registry
Many companies rely on third parties for version control, testing, and for creating Docker containers. To reduce this dependency, I have decided to show how I manage my projects in my own environments, gaining greater autonomy, stability, and security in my workflow.
Programs
Gitea
Gitea is an excellent alternative to Github, allowing you to maintain as many repositories as you like and providing nearly all the functionalities of Github. With this, we have a solution for maintaining our code and its versioning in our own infrastructure.
Gitea Act Runner
Gitea Act Runner is a service that allows you to run Gitea actions, enabling pipelines similar to those in Github. This service can be run on a different server to separate the CI/CD server from the code versioning server. Below is a docker compose configuration that runs Gitea alongside Gitea Act Runner:
1services:
2 server:
3 image: docker.io/gitea/gitea:latest
4 container_name: gitea
5 environment:
6 - USER_UID=1000
7 - USER_GID=1000
8 - ROOT_URL=https://gitea.gabrielcachadina.com/
9 - GITEA__SERVICE__REGISTER_MANUAL_CONFIRM=true
10 restart: always
11 networks:
12 - gitea
13 volumes:
14 - ./Gitea:/data
15 - /etc/timezone:/etc/timezone:ro
16 - /etc/localtime:/etc/localtime:ro
17 ports:
18 - "3000:3000"
19 - "222:22"
20
21 runner:
22 image: docker.io/gitea/act_runner:nightly
23 environment:
24 GITEA_INSTANCE_URL: "https://gitea.gabrielcachadina.com"
25 GITEA_RUNNER_REGISTRATION_TOKEN: "{{ gitea_runner }}"
26 GITEA_RUNNER_NAME: "Gitea Runner Localhost"
27 volumes:
28 - ./GiteaRunner/data:/data
29 - /var/run/docker.sock:/var/run/docker.sock
30 networks:
31 - gitea
32 restart: always
33
34networks:
35 gitea:

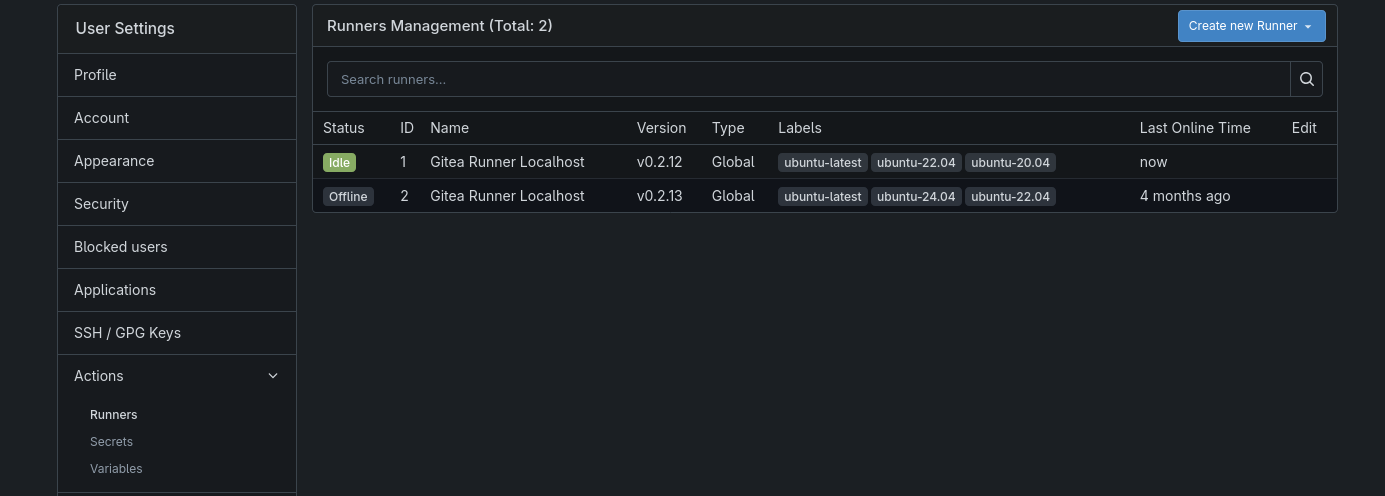

36 external: falseYou will need to replace the Gitea token and add the runner in the Gitea admin panel.
Docker Registry
Docker Registry allows you to store Docker containers of the services you create. In my case, I store the containers on the same server that runs Gitea, although this service could be deployed on a separate server. To run this service, you could use the following docker-compose:
1---
2services:
3 registry:
4 image: registry:latest
5 ports:
6 - "5000:5000"
7 environment:
8 REGISTRY_AUTH: htpasswd
9 REGISTRY_AUTH_HTPASSWD_REALM: Registry
10 REGISTRY_AUTH_HTPASSWD_PATH: /auth/registry.password
11 REGISTRY_STORAGE_FILESYSTEM_ROOTDIRECTORY: /registry-data
12 volumes:
13 - ./DockerRegistry/auth:/auth
14 - ./DockerRegistry/registry-data:/registry-data
15 restart:
16 alwaysTo generate the password, you need to create the registry.password file like this:
1htpasswd -B -c /auth/registry.password "$DOCKERREGISTRY_USER" "$DOCKERREGISTRY_PASS"Real Application

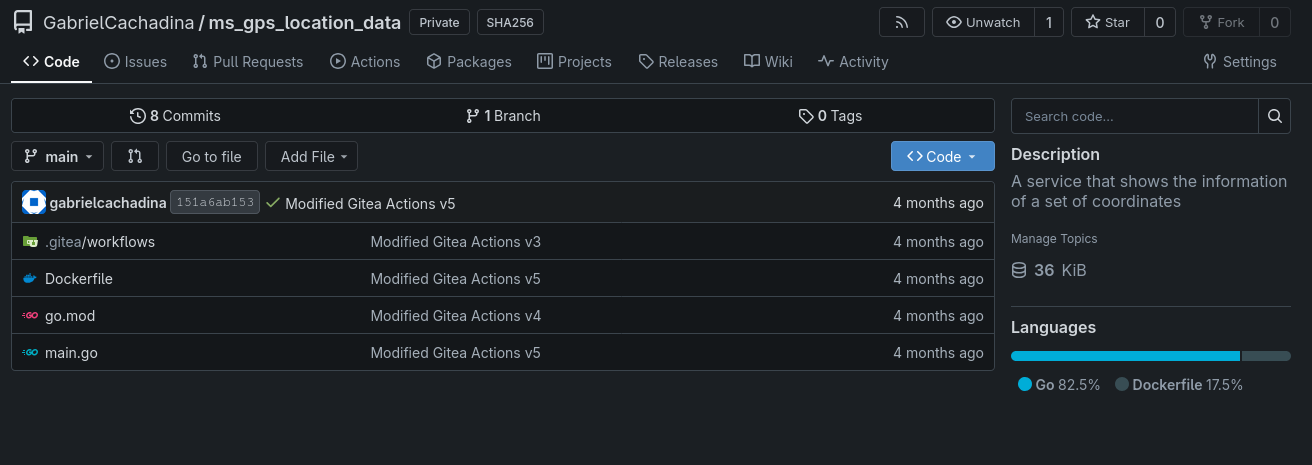

As an example, here is the code for a microservice I currently use to return all geographic data from a pair of coordinates via an API. This small code only contains an unusual addition, the folder .gitea/workflows.
Inside the folder, I have a workflow that, when the code is updated, starts an Ubuntu machine, creates the Docker container, and uploads it to the Docker Registry:
1name: Build and Push Docker Image (Go)
2
3on:
4 push:
5 branches:
6 - main
7
8jobs:
9 build-and-push:
10 runs-on: ubuntu-latest
11
12 steps:
13 - name: Manual Git clone from Gitea
14 run: |
15 git clone https://USERNAME:${{ secrets.GITEA_TOKEN }}@gitea.gabrielcachadina.com/GabrielCachadina/ms_gps_location_data.git
16 cd ms_gps_location_data
17 git checkout main
18
19 - name: Log in to Docker Registry
20 working-directory: ./ms_gps_location_data
21 run: |
22 echo "${{ secrets.DOCKER_PASSWORD }}" | docker login dockerregistry.gabrielcachadina.com -u "${{ secrets.DOCKER_USERNAME }}" --password-stdin
23
24 - name: Clean up Docker images
25 working-directory: ./ms_gps_location_data
26 run: |
27 docker image prune -f
28 docker image rm dockerregistry.gabrielcachadina.com/ms_gps_location_data:latest || true
29
30 - name: Build Docker image
31 working-directory: ./ms_gps_location_data
32 run: |
33 docker build --no-cache -t dockerregistry.gabrielcachadina.com/ms_gps_location_data:latest .
34
35 - name: Push Docker image
36 working-directory: ./ms_gps_location_data
37 run: docker push dockerregistry.gabrielcachadina.com/ms_gps_location_data:latestFinally, to run this service on other servers, it could be done manually, but I prefer to spin up the microservices using Ansible. Specifically, I create a role for each service, with the role structure being like this:
1.
2├── defaults
3│ └── main.yml
4├── meta
5│ └── main.yml
6└── tasks
7 └── main.ymlAnd the tasks/main.yml file:
1---
2################# Directory Config #################
3- name: Ensure application directory exists
4 file:
5 path: "{{ app_dest }}"
6 state: directory
7 owner: '1000'
8 group: '1000'
9 mode: '0755'
10
11- name: Ensure logs directory exists
12 file:
13 path: "{{ app_dest }}/logs"
14 state: directory
15 owner: '1000'
16 group: '1000'
17 mode: '0755'
18################# Save the image localy #################
19- name: Login to private Docker registry on controller
20 delegate_to: localhost
21 run_once: true
22 community.docker.docker_login:
23 registry_url: "dockerregistry.gabrielcachadina.com"
24 username: "{{ dockerregistry_user }}"
25 password: "{{ dockerregistry_pass }}"
26 become: false
27
28- name: Pull Docker image on controller (ensure it's present)
29 delegate_to: localhost
30 run_once: true
31 community.docker.docker_image:
32 name: "{{ image_name }}"
33 source: pull
34 force_source: true
35 become: false
36
37- name: Save Docker image on controller to temporary file
38 delegate_to: localhost
39 run_once: true
40 command: >
41 docker save {{ image_name }} -o /tmp/{{ container_name }}.tar
42 become: false
43
44- name: Save Docker image on controller to temporary file
45 delegate_to: localhost
46 run_once: true
47 command: >
48 docker save {{ image_name }} -o /tmp/{{ container_name }}.tar
49 become: false
50
51- name: Change the permissions for the tarball
52 delegate_to: localhost
53 run_once: true
54 file:
55 path: "/tmp/{{ container_name }}.tar"
56 mode: "0644"
57 become: false
58
59################# Push and Compile #################
60
61- name: Remove old container
62 community.docker.docker_container:
63 name: "{{ container_name }}"
64 state: absent
65 force_kill: true
66
67- name: Remove existing image from remote
68 community.docker.docker_image:
69 name: "{{ image_name }}"
70 state: absent
71
72- name: Copy Docker image tarball to remote host
73 copy:
74 src: "/tmp/{{ container_name }}.tar"
75 dest: "/tmp/{{ container_name }}.tar"
76 mode: '0644'
77
78- name: Load Docker image from tarball
79 community.docker.docker_image:
80 name: "{{ image_name }}"
81 load_path: "/tmp/{{ container_name }}.tar"
82 source: load
83 force_source: true
84
85- name: Remove temporary tar file from remote
86 file:
87 path: "/tmp/{{ container_name }}.tar"
88 state: absent
89
90
91- name: Start the container
92 community.docker.docker_container:
93 name: "{{ container_name }}"
94 image: "{{ image_name }}"
95 state: started
96 restart_policy: "{{ restart_policy }}"
97 privileged: yes
98 network_mode: host
99 env:
100 TZ: Europe/Madrid
101 volumes:
102 - "{{ app_dest }}/logs:/app/logs"
103 ports:
104 - "22003:22003"
105
106################# Clean from Localhost #################
107
108- name: Remove temporary tar file from controller (cleanup)
109 delegate_to: localhost
110 run_once: true
111 file:
112 path: "/tmp/{{ container_name }}.tar"
113 state: absent
114 become: false
115
116- name: Remove Docker image from controller (cleanup)
117 delegate_to: localhost
118 run_once: true
119 community.docker.docker_image:
120 name: "{{ image_name }}"
121 state: absent
122 force_absent: true
123 become: falseAs a final note, I want to emphasize that all these services shown are behind a reverse proxy using NGINX, to ensure they use HTTPS and avoid security issues. Additionally, the ports used by the services are disabled within the firewall of the services.
